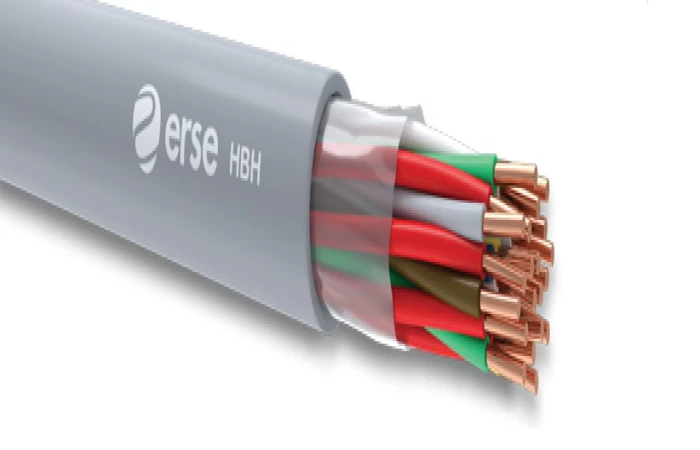

ERSE HBH & HBH-K

TV - Telephone Cable

Application:

At indoor installations;
- Telephone exchanges and subscriber distributions
- Signal and data transmission
- In places where human life and valuable materials and equipment need to be protected

NOTES

HBH: Electrolytic Copper Conductor
HBH-K: Tinned Copper Conductor
Based on TS IEC 60189-2 standard

Constructions:

Conductor	IEC 60228; DIN VDE 0295; EN 60228 Class 1 Electrolytic Copper
Insulation	Solid PE Compound
Colour Code	TS IEC 60189-2
Stranding	In layers up to 10 pairs 20 pairs - 100 pairs: 10 pair groups twisted together; each group is wrapped by polypropylene identification tape
Wrapping	Pes Tape (more than 10 pairs)
Sheath	HFFR Compound
Sheath Colour	RAL 7001 Grey

Technical Characteristics:

CONDUCTOR RES.		INSULATION RES.	MUTUAL CAP.	TEMPERATURE RANGE	TEST VOLTAGE(AC)	OPERATING VOLTAGE
mm 0,5	Ω/km 97,8	500MΩxkm	120nF/km	-30ºC+70ºC	1000V	250V

BENDING RADIUS	FLAME RETARDANT TEST	SMOKE DENSITY TEST	TEST ON CORROSIVENESS OF COMBUSTION GASES	FLAME PROPOGATION	HALOGEN FREE TEST
10x Cable Ø	IEC 60332-1-2 VDE 0482-332-1-2 EN 60332-1-2	IEC 61034-2 VDE 0482-1034-2 EN 61034-2	IEC 60754-2 VDE 0482-754-2 EN 60754-2	IEC 60332-3-24 VDE 0482-332-3-24 EN 60332-2-24	IEC 60754-1 VDE 0482-754-1 EN 60754-1

CODE NR.		NUMBER OF PAIRS AND WIRE DIAMETER (mm)	OVERALL DIAMETER (mm)	COPPER WEIGHT (kg/km)	APPROX. CABLE WEIGHT (kg/km)	STANDARD LENGTH (mt)
HBH	HBH-K
342105013	342305013	1 x 2 x 0,50	3,10	6	16	100/500/1000
342105023	342305023	2 x 2 x 0,50	3,80	10	25	100/500/1000
342105033	342305033	3 x 2 x 0,50	4,40	13	32	100/500/1000
342105043	342305043	4 x 2 x 0,50	4,60	17	40	100/500/1000
342105053	342305053	5 x 2 x 0,50	5,00	20	49	100/500/1000
342105063	342305063	6 x 2 x 0,50	5,40	24	56	100/500/1000
342105103	342305103	10 x 2 x 0,50	7,20	39	90	100/500/1000
342105203	342305203	20 x 2 x 0,50	9,00	77	140	100/500/1000
342105303	342305303	30 x 2 x 0,50	10,50	110	198	100/500/1000
342105503	342305503	50 x 2 x 0,50	13,20	180	302	100/500/1000
342105113	342305113	100 x 2 x 0,50	18,80	376	573	100/500/1000
342105223	342305223	200 x 2 x 0,50	25,80	725	1204	100/500

ERSE HBH & HBH-K Catalog
